4 Wheel Electric Forklift Truck Pneumatic Tyre
Power, increased battery life and performance for demanding applications.
- Models
- J1.5-3.5GX 2
- Capacity
- 1500-3500kg

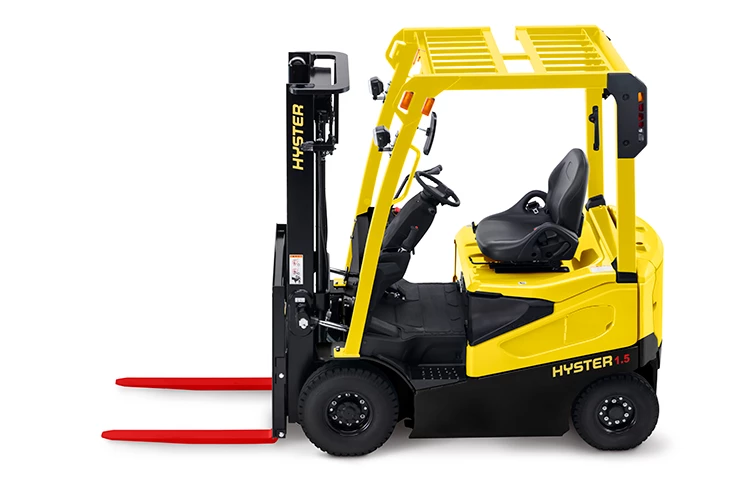

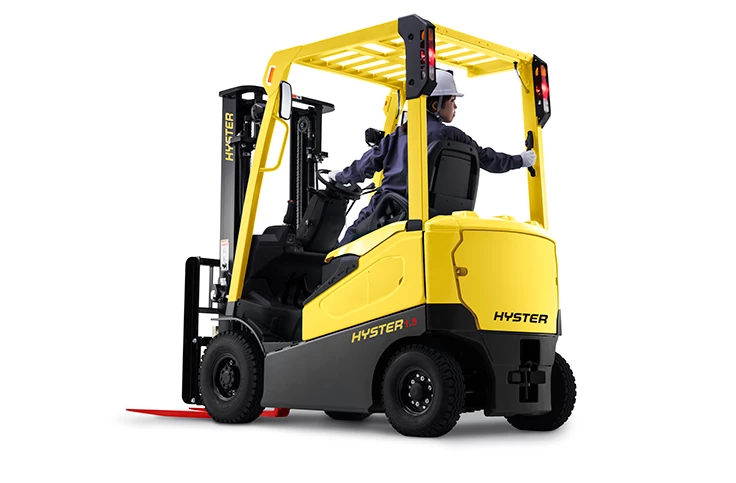

The J1.5-3.5GX 2 counterbalanced lift truck combines the power, clean performance and battery life modern operations require, all with advanced technology to keep business running smoothly, shift after shift.
- Dependability
- Productivity
- Low cost of ownership
Dependability, Productivity and Low Cost of Ownership
Dependability
Productivity
Low Cost of Ownership
- Through a redesigned drive axle, this battery electric unit now shares the same robust structure as its internal combustion equivalent.
- AC motor technology on traction and integrated hoist/ steering allows the truck to work reliably over long runs and in demanding work cycles, reducing downtime significantly
- Offering excellent manoeuvrability for narrow aisle applications, a refined short chassis option is offered for the 2 tonne and 3.5 tonne models to facilitate all application requirements.
- Through an integrated turning speed control system, truck lean is minimised to provide the operator with an enhanced feel of control and confidence in fast paced applications.
- AC controlled traction and integrated hydraulic/steer motors provide optimised responsiveness to the operator, providing the most efficient load handling in the toughest of applications.
- The option of horizontal battery extraction enables an easy exchange of batteries to drastically increase uptime.
- Customisable performance settings allow energy efficiency to be ideally balanced with productivity, delivering high throughput at a lower operating cost.
- Increased battery life up to 8.5 hours in standard performance mode, and 9.5 hours in Eco mode increases uptime and reduces electricity costs.
- Fault code registry enables diagnostic ease. This enables cutting-edge maintenance planning for lowering costs and increasing productivity.
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Battery Capacity |
---|---|---|---|---|---|
J1.5GX 2 | 1500kg | 500mm | 6025mm | 1845mm | 48V / 390-525Ah(V/Ah) |
J1.8GX 2 | 1800kg | 500mm | 6025mm | 1875mm | 48V / 390-525Ah(V/Ah) |
J2.0GX 2 | 2000kg | 500mm | 6035mm | 1990mm | 48V / 440-700Ah(V/Ah) |
J2.0SGX | 2000kg | 500mm | 6030mm | 1910mm | 48V / 390-525Ah(V/Ah) |
J2.5GX 2 | 2500kg | 500mm | 6035mm | 2035mm | 48V / 565-700Ah(V/Ah) |
J3.0GX 2 | 3000kg | 500mm | 6025mm | 2190mm | 48V / 440-600Ah(V/Ah) |
J3.5SGX 2 | 3500kg | 500mm | 6030mm | 2255mm | 48V / 440-600Ah(V/Ah) |
