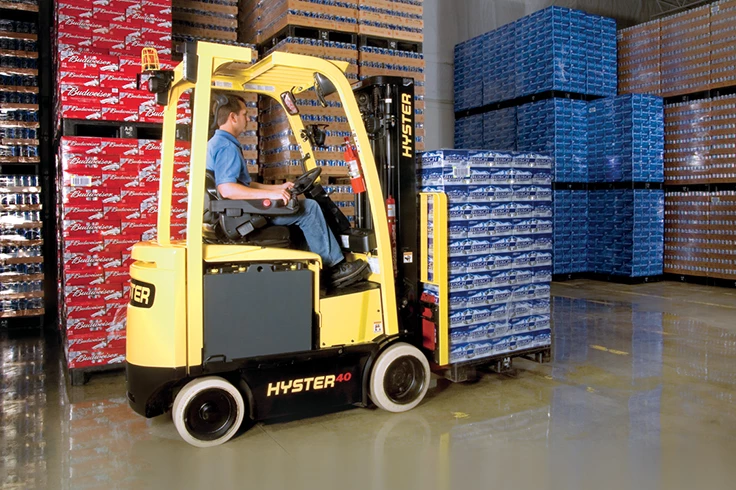

4 Wheel Electric Forklift Truck Cushion Tire

THERE’S NO QUIT IN A HYSTER LIFT TRUCK.

Models
E30-40XN
Capacity
1300-1800kg

The highly durable and ultra reliable Hyster E30-40XN series offers numerous advantages in quality and ergonomics, making it one of the most operator-friendly AC-powered lift trucks in the world. Setting the standard in electric lift trucks, it lowers overall operating costs and maximizes productivity. This is the workhorse you can count on day in and day out to get the job done.

  • Superior serviceability
  • Ergonomic design
  • Low energy consumption
  • Dependability
  • Performance modes
Downloads
Industry Sector

‐ Retail Distribution
‐ Warehouse & 3PL
‐ Wholesale Distribution
‐ Retail & E-Commerce (DC/fulfillment)
‐ Health & Pharma

Ask the Experts

Interested in more information on this truck? Our solutions team is available to discuss your specific application and how this product can meet your needs.

Start a Quote

Highly durable and ultra reliable

AC-powered. Operator-friendly.

SUPERIOR SERVICEABILITY
  • The E30-40XN series utilizes CANbus communications to simplify wiring and improve serviceability.
  • State-of-the-art on-board diagnostics reduce repair time and minimize expensive part-swapping.
  • A two-piece floor plate and side plates can be easily removed for unrestricted service access. The lift-out floor plate requires no tools for quick and easy daily operator checks.
  • Easy battery access is provided via the gas spring-assisted hood and quick release handle. The rear counterweight service cover is easily removed by loosening two screws.
ERGONOMIC DESIGN

The ergonomic design of the E30-40XN series means greater comfort for your operator. Enhanced ergonomics combined with customizable performance characteristics increase overall productivity and uptime.

  • The easy-to-use 3-point entry design of the operator compartment uses a large molded hand grip, hip restraint and an open non-slip lowered step height to minimize muscle and joint strain during entry and exit.
  • Six different seat options and adjustable features allow customization for a superior level of comfort. The optional full-suspension seat offers easy fore/aft adjustment and an adjustable seat back angle for the highest level of comfort.
  • The standard 12-inch steering wheel with integrated spinner knob reduces fatigue while providing more knee room and goes lock-to-lock in just four turns for superior efficiency, maneuverability and control.
  • An infinitely adjustable tilt steer column provides increased comfort while minimizing fatigue.
  • The armrest is cushioned and contoured to provide full forearm support. The hydraulic functions, seatside directional control switch, horn and battery disconnect button are all incorporated in the armrest and designed to maximize operator comfort and ease of use.
LOW ENERGY CONSUMPTION

According to the VDI Energy Cycle Standardized Test, the E30-40XN series provides the lowest energy consumption among competitors. Better energy utilization saves money and reduces impact on the environment.

DEPENDABILITY
  • The unitized design and welded steel construction of the frame provide better rigidity and excellent protection for the internal components.
  • The cast ductile iron steer axle with transverse, double-acting hydraulic cylinder, tapered roller spindle-support bearings and non-adjustable tie rods provide maximum durability with superior steering control and load handling.
  • Double-sealed electrical connectors provide a dust proof and waterproof connection to prevent contamination-related failures.
  • Leak-free O-ring face seal fittings reduce leaks for enhanced reliability.
  • All vehicle systems are managed electronically to optimize performance, significantly increase overall reliability, and enhance diagnostic capabilities for maximum uptime.
Model Load Capacity Load Centre Lift Height Turning Radius AST (wide / long) Battery Capacity Weight
E30XN 1600kg 500mm 5500mm 1644mm 3216 / 3404mm 36V / 1200Ah - 48V / 1000Ah(V/Ah) 3414kg
E35XN 1800kg 500mm 5500mm 1657mm 3226 / 3417mm 36V / 1200Ah - 48V / 1000Ah(V/Ah) 3532kg
E40XN 2000kg 500mm 5500mm 1692mm 3216 / 3452mm 36V / 1200Ah - 48V / 1000Ah(V/Ah) 3719kg
