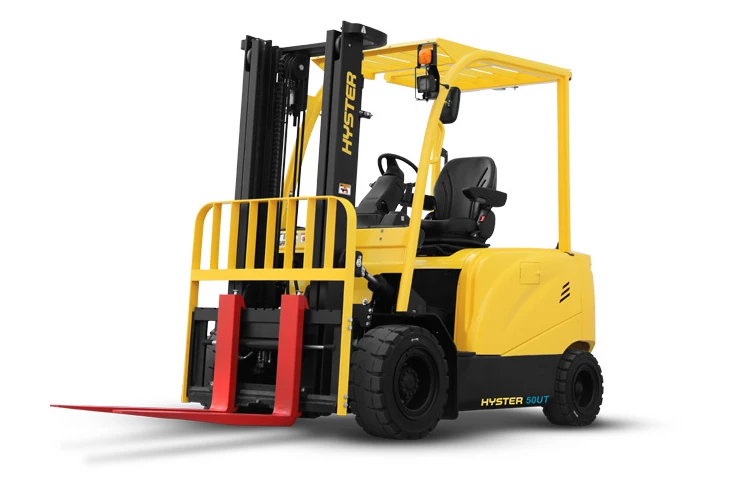

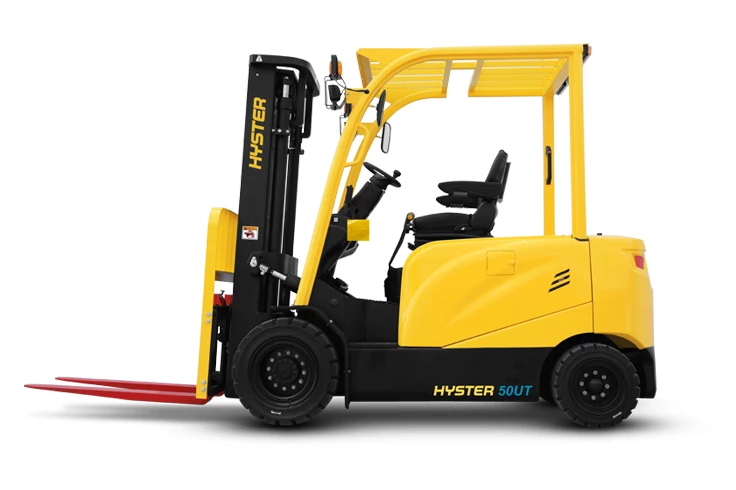

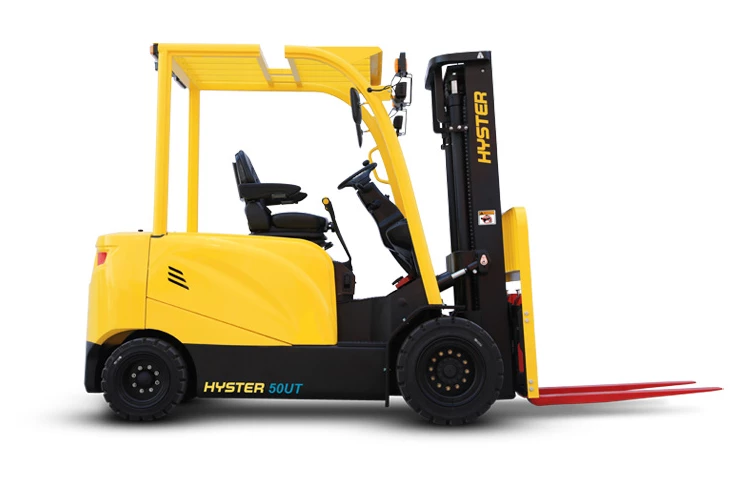

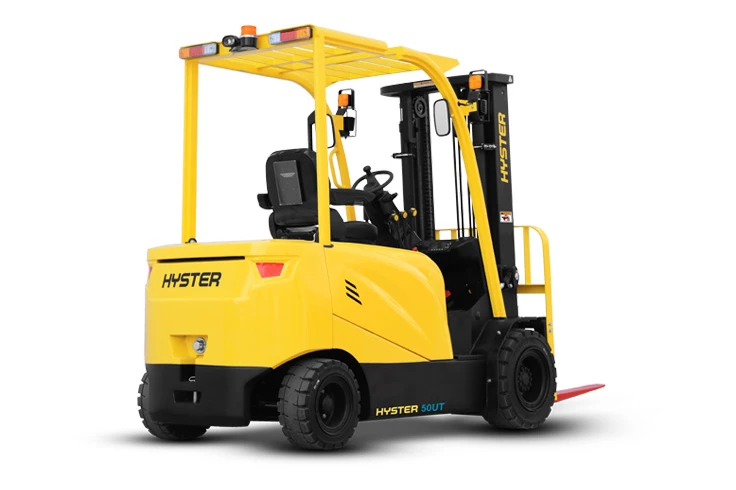

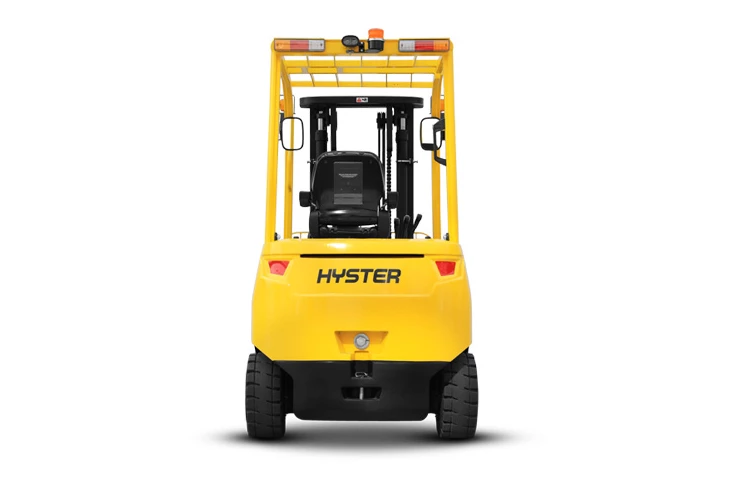

4-Wheel Electric Counterbalanced
INTEGRATED LITHIUM-ION 4-WHEEL PNEUMATIC TIRE FORKLIFT
- Models
- J30-70UT
- Capacity
- 2200-3500kg
The cost-effective 4-wheel J30-70UTL is equipped with lithium-ion battery power designed into the forklift direct from the factory.
- Integrated Lithium-ion Battery Power
- Comfortable Operation
- Low Cost of Ownership
- Robust Components
POWER AND PERFORMANCE WITH LOW TCO
Hyster UTL models are equipped with a maintenance-free integrated lithium-ion battery with charge port that is designed into the forklift direct from the factory. AC traction and lifting motors with electronic control as well as maintenance-free oil-immersed brakes and a regenerative braking system provide for smooth performance. Multiple performance modes are selectable through the dash display.
Features a low step to enter the operator compartment, wide views through the mast and ample foot space. Hydraulic power steering, adjustable steering column and a full suspension seat with lumbar support offers added comfort.
Maintenance costs and requirements are reduced by implementing readily available, cost effective replacement parts. Easy service access to the controllers and drivetrain helps minimize service time.
The use of high quality and robust components within the UT series delivers a reliable operation with limited wear and tear. Cylinders with hard chrome rods reduce seal wear for long life. A full-flow, low pressure filter on the return line keeps the hydraulic oil clean, which helps to minimize seal and pump wear. In addition, this keeps the control valve in good condition, leading to low service costs.
| Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Battery Capacity | Weight |
|---|---|---|---|---|---|---|
| J50UTL | 1360kg | 600mm | 6578mm | 1481mm | Lead acid or thin plate pure lead(V/Ah) | 2322kg |
| J35UTL | 1360kg | 600mm | 6578mm | 1481mm | Lead acid or thin plate pure lead(V/Ah) | 2322kg |
| J35UT | 1360kg | 600mm | 6578mm | 1481mm | Lead acid or thin plate pure lead(V/Ah) | 2322kg |
| J50UT | 1360kg | 600mm | 6578mm | 1481mm | Lead acid or thin plate pure lead(V/Ah) | 2322kg |
| J70UT | 1587kg | 600mm | 6578mm | 1577mm | Lead acid or thin plate pure lead(V/Ah) | 2400kg |
| J40UT | 1587kg | 600mm | 6578mm | 1577mm | Lead acid or thin plate pure lead(V/Ah) | 2400kg |
| J40UTL | 1587kg | 600mm | 6578mm | 1577mm | Lead acid or thin plate pure lead(V/Ah) | 2400kg |
| J60UT | 1587kg | 600mm | 6578mm | 1577mm | Lead acid or thin plate pure lead(V/Ah) | 2400kg |
| J60UTL | 1587kg | 600mm | 6578mm | 1577mm | Lead acid or thin plate pure lead(V/Ah) | 2400kg |
| J70UTL | 1587kg | 600mm | 6578mm | 1577mm | Lead acid or thin plate pure lead(V/Ah) | 2400kg |
| J30UT | 1814kg | 600mm | 6578mm | 1577mm | Lead acid or thin plate pure lead(V/Ah) | 2400kg |
| J30UTL | 1814kg | 600mm | 6578mm | 1577mm | Lead acid or thin plate pure lead(V/Ah) | 2400kg |
