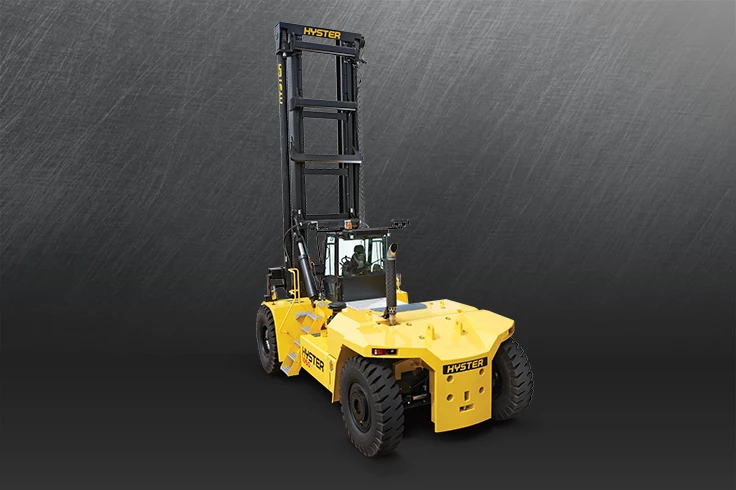

Heavy Duty Forklift Truck Pneumatic Tyre
Introducing the strongest Hyster® forklift trucks ever produced
- Intelligent design
- Low Cost of Ownership
- Easily serviceable
- Operator comfort
- Performance optimisation
Heavy-duty trucks for extreme duty applications.
This mighty range makes light work of the heaviest loads and toughest environments.
Reliable proven components and exceptionally robust frame and mast design provide maximum uptime and low cost of ownership.
Low Cost of Ownership
Heavy-duty mast and carriages are engineered for long load centers, wide loads and specialty loads in heavy duty-cycle conditions.
Carriages are designed to have minimal capacity derate with apron sideshifting carriages, enabling the truck to provide close to full rated capacity under all operating conditions. Greaseable load rollers help the front end components to provide years of dependable performance. The mast, with robust mast channels, rollers, stub shafts and chain anchors, helps to prevent less mast deflections.
Available in short wheel base to deliver an optimum combination of compactness, nimbleness and agility for applications with space constraints requiring a tighter turning radius.
Fuel consumption is a key driver of the total cost of ownership for heavy duty lift trucks. Hyster® high capacity lift trucks are engineered with integrated powertrain system and on-demand hydraulics to deliver low fuel consumption with high levels of productivity.
The engine design produces more power and torque using XPI high-pressure, common-rail fuel injection and variable geometry turbochargers. Advanced controls enable the engine to provide peak performance and operating efficiency while delivering great fuel economy and durability.
Hyster forklifts are designed with the service technician in mind. The standard, powered, tilting operator compartment and the broad, removable floor plates provide quick access to key components, and daily checks do not require tilting the cab.
Major engine and drivetrain components are engineered to operate on 500-hour service intervals.
Extended hydraulic oil change intervals of 2000 hours help the truck remain in operation with longer time between oil changes or servicing.
The ergonomically designed high visibility cab puts greater productivity within easy reach. Equipped with an armored glass top window, curved front and rear windows and steel doors with tempered glass, the operator cab provides excellent all-around visibility.
Inside the cab there is more space with the largest entry area in the industry, more control with a full-color screen displaying performance data at the operator’s fingertips and more comfort with an exclusive lateral sliding seat, adjustable steering column and foot pedal, plus ergonomic controls.
Curved, scratch resistant, tempered glass front and rear windshields, FOPS certified armored glass top window and one piece steel-framed glass doors provide operators with excellent all-around visibility. On the exterior, sloping counterweights enhance visibility of steer tires for improved maneuverability and reduced tire gouging.
Trucks feature performance optimization developments such as cooling on demand, load sensing hydraulics, RPM management, alternate engine idle speed and multiple oil-immersed brakes with cooling system. All of these features provide reliability and low cost of operation to help further reduce the total fuel consumption in most applications.
The width of the heavy duty drive axle, with reinforced spindles with double reduction provides stability and durability when handling the heaviest loads.
The high-performance powertrain has built-in engine and transmission protection systems, providing maximum reliability and a low total cost of ownership. Fast travel speeds and lifting speeds help contribute to reduced operating costs during a shift with class-leading lift speeds.
|Model||Load Capacity||Load Centre||Lift Height||Turning Radius||Overall Width||Weight||Engine||Transmission|
|H44XDS12||44000kg||1200mm||9894mm||7100mm||4200mm||57754kg||MTU 10.7L Diesel||Dana S.O.H TE 30|
|H40XD12||40000kg||1200mm||9894mm||7791mm||4200mm||50120kg||MTU 10.7L Diesel||Dana S.O.H TE 30|
|H48XD12||48000kg||1200mm||9894mm||7791mm||4200mm||55150kg||MTU 10.7L Diesel||Dana S.O.H TE 30|
|H44XD12||44000kg||1200mm||9894mm||7791mm||4200mm||52350kg||MTU 10.7L Diesel||Dana S.O.H TE 30|
|H36XDS12||36000kg||1200mm||9894mm||7100mm||4200mm||52385kg||MTU 10.7L Diesel||Dana S.O.H TE 30|
|H40XDS12||40000kg||1200mm||9894mm||7100mm||4200mm||55525kg||MTU 10.7L Diesel||Dana S.O.H TE 30|
|H48XDS12||48000kg||1200mm||9894mm||7100mm||4200mm||60963kg||MTU 10.7L Diesel||Dana S.O.H TE 30|
Introducing the XD series cab for Hyster Big Trucks
Reimagined design that maximises operator comfort and uptime.Climb inside
WIRELESS ASSET MANAGEMENT
Hyster Tracker provides true wireless fleet management, drives fleet efficiency, improves operator performance, reduces your carbon footprint and lowers your overall material handling costs.
Stage V Engines for Big Trucks
WHAT YOU NEED TO KNOW ABOUT EU STAGE V HYSTER® BIG TRUCKS
Hyster has always been at the forefront of environmental technologies. Here’s why and how Hyster has brought Stage V engines into its Big Truck range.
HVO: a step towards zero-emissions
Did you know Hyster Big trucks trucks and specified engines in the 2-3.5t range are able to run on HVO100 according EN15940? HVO is a cleaner fuel that offers up to 90% reduction in CO2 emissions. Helping the transition towards zero-emissions with internal combustion engines (ICE) that offer exceptional durability and consistent power delivery even in the most extreme environments.Find out more
The truck is only part of the solution
Hyster knows that a tough truck, is even better when it comes with a strong partner to meet your unique needs.
Hyster® forklift truck dealers understand customers’ business and are professionals who can assist in selecting the right forklift truck, as well as providing the most comprehensive support and service in the industry.
Quality processes manufacturing
See how our high capacity forklift trucks, Empty Container Handlers, ReachStackers and Top Picks are built in our factory in Nijmegen, the Netherlands.Watch Video
