63
minutes saved per route
boosting productivity and efficiency
WALKIE-SLED COMBO FOR FINAL DELIVERY
Distinctly Hyster. Built for the Final Mile.

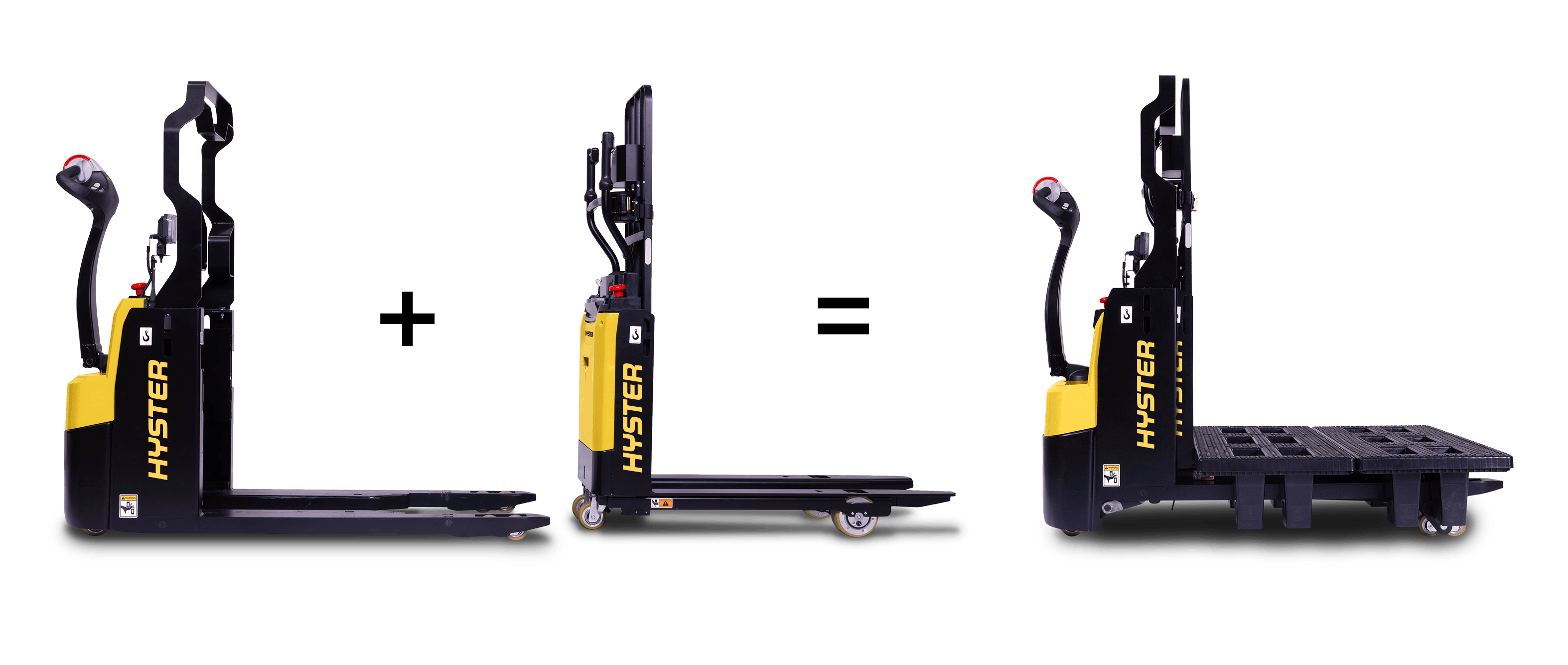

The Hyster Route Runner™ revolutionizes last-mile delivery with a flexible, nested solution. This combo walkie pallet truck and motorized sled, along with the matched pallets, streamlines materials movement from liftgate to tight indoor spaces—helping your drivers delivery more, faster.
Don’t live with the status quo
Can you increase route speed, driver productivity and customer satisfaction while reducing driver strain and facility damage? Yes, you can.
27,000
reduction in pounds lifted per route
limiting driver strain
1,900
fewer steps taken per route
easing driver fatigue
Base Pallet Truck
LOAD CAPACITY: 3,300 LBS
The Hyster® DW33ALZ electric walkie pallet jack delivers the stability and control drivers need to unload pallets from trailers and move loads across parking lots and uneven surfaces. Built to handle real‑world delivery conditions, it keeps productivity high outside the dock—where many pallet trucks struggle.

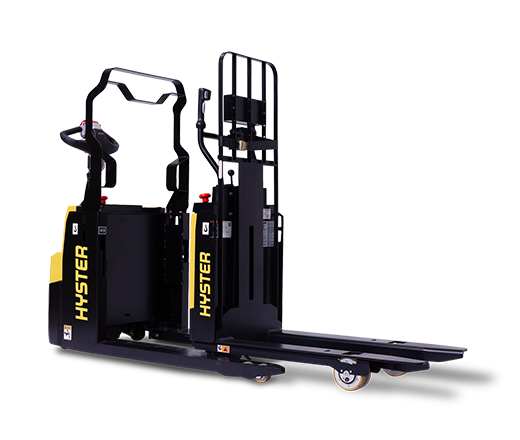

Nested motorized sled
LOAD CAPACITY: 1,200 LBS

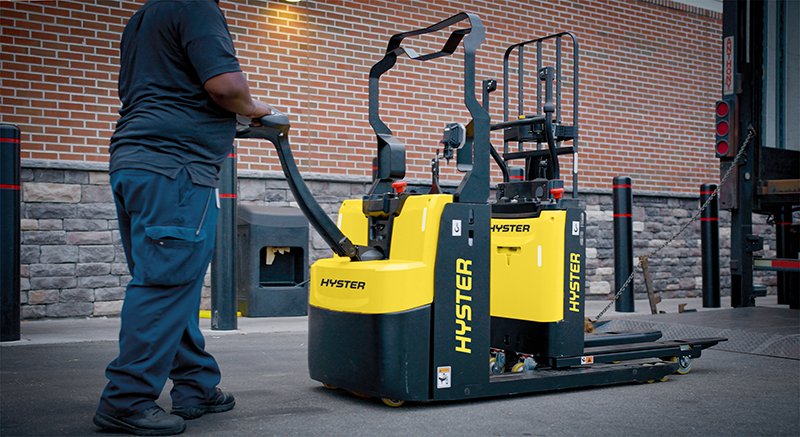

The Hyster® DS12ALZ electric motorized sled is lightweight, low‑profile and highly maneuverable—engineered specifically for the final leg of delivery. Its compact design helps meet store restrictions on heavy equipment that can damage floors, while providing powered assistance to move product safely around pedestrians, through narrow aisles and into tight back‑of‑store spaces like coolers and storerooms.
Also sold separately
Matching pallets
40 lightweight, narrow-footprint pallets nest tightly to maximize trailer space in trailers and reduce the physical strain on drivers handling empty pallets. Designed to work seamlessly with the Route Runner system, they help drivers stay efficient from the first stop to the last.
- Ergo-lift: Raises the platform up to 22.5 inches to bring the product closer to the worker, reducing bending and lifting during restocking.
- Ergo-drive: Provides powered assistance to help drivers maneuver heavy loads up inclines, over thresholds and across uneven surfaces with less manual effort.
By combining the capabilities of a pallet truck and a handcart into a single system, the Route Runner can reduce manual handling by as much as 50%, helping improve productivity while lowering risk of repetitive-strain injuries.

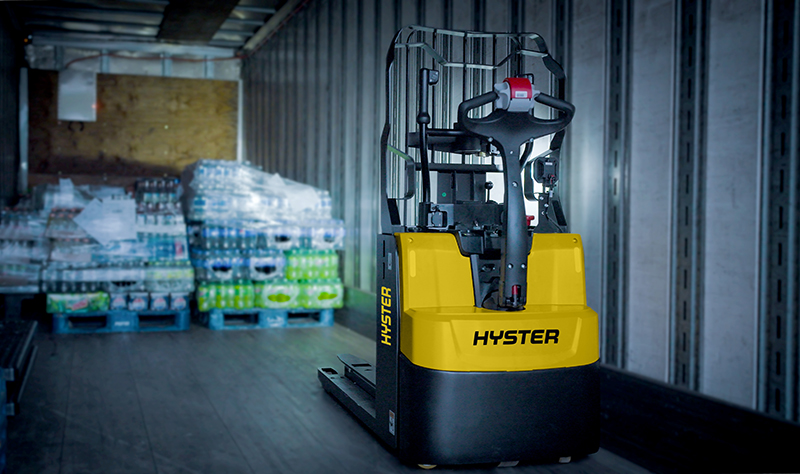

Integrated li-ion batteries with on-board chargers in both the pallet truck and the motorized sled keep performance strong throughout the route. A smart charge option automatically prioritizes charging to whichever component needs more power. Additionally, the Route Runner can be charged in the back of the truck through a standard 110v outlet.
Direct-delivery. Any Industry.
Reach tight or crowded destinations with ease
Route Runner drives efficient last-mile and direct-store delivery—getting goods exactly where they need to go.
| Model | Load Capacity | Load Center | Turning Radius | Battery Capacity Voltage | Weight |
|---|---|---|---|---|---|
| DS12ALZ | 1200lbs | 24in | 36.98 | 24 / 40 | 396.8 |
| DW33ALZ GMA pallet | 3300lbs | 24in | 59.4 | 24 / 40 | 551.2 |
| DS12ALZ/DW33ALZ | 3300lbs | 24in | |||
| DW33ALZ Bev pallets (x2) | 3300lbs | 24in | 59.4 | 24 / 40 | 551.2 |
ROUTE RUNNER FEATURES & PERFORMANCE
Yes, it lifts to 22.5 inches.
Yes. The forks can be raised from the rear of the handles while driving, and from either side while merchandising when stationary.
The motorized load wheels provide powered assist.
The Route Runner is 22” wide for ease of maneuverability in tight spaces.
A dedicated cooler package is available to support reliable operation in cold environments.
ELECTRICAL SYSTEM & CHARGING
It takes approximately four hours using the smart charge cable, or approximately two hours when using on-board chargers on both the pallet truck and sled.
The modified pallet jack has a 40 Ah lithium-ion battery while the motorized sled has a 20 Ah lithium- ion battery.
MAINTENANCE & SERVICE
Yes. The design uses a press-on polyurethane hub.
No. For safety reasons, all sled functions are disabled while the units are nested.
PCST – Personal Computer Service Tool
PARTS & ACCESSORIES
Yes. Additional pallets can be ordered. Contact your dealer for more information.
Yes, an operator keypad is available as an optional feature.
