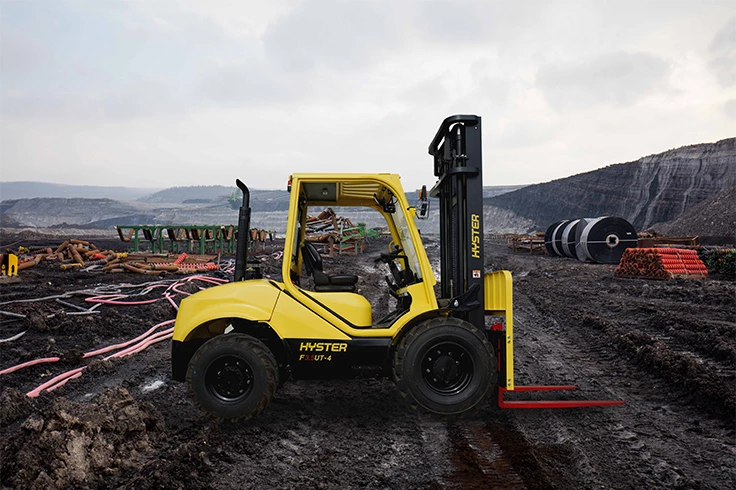

Hyster F1.8-5.0UT - Rough Terrain Forklift

Heavy Duty Forklift Truck Pneumatic Tire

Power to Handle Harsh Applications


Provides the ideal solution for applications facing challenging terrains.

  • 100% Differential Lock (2WD)
  • High Ground Clearance
  • Easily serviceable
  • Low cost of ownership
  • Excellent visibility
Industry Sector

- Lumber
- Concrete
- Steel, Aluminum & Metals
- Mining, Energy & Construction

Start a Quote

Interested in more information on this lift truck? Our solutions team is available to discuss your specific application and how this product can meet your needs.

Start a quote

Ideal solution for challenging terrains

Deliver reliability and productivity

Elevate Productivity
  • Operator Presence System (OPS)
  • Audible and visual alarms
  • LED working, turn and tail lights
  • Low mounted LED strobe light
  • Optional weighing system; to improve operational efficiency
  • Optional cab and screen configurations
  • Simple and clear dash; keeping the operator informed
  • Optional rear grab handle with horn button, mirror and front and rear cameras to assist operators in specific applications
  • Secure overhead guard
Enhanced Driver Comfort
  • Driver fatigue minimised by full suspension seat
  • Adjustable steering column and seat to suit all operators
  • Low entrance step, large uncluttered floor space and ergonomically positioned pedals
  • Optional air conditioning and heater
Simple Serviceability and Low Cost of Ownership
  • High quality and robust components, with efficient filtration and effective cooling to significantly reduce wear and tear
  • All serviceable parts are easy to access; allowing for fast and straightforward maintenance
  • Computer based diagnostics are not required
  • Special rough terrain factory forks required*
  • Maintenance costs and requirements are reduced by simple, readily available, genuine and cost effective replacement parts

*Check mounting class, P and Q dimensions carefully before fitting local forks

Low Cost of Ownership

The use of high quality and robust components within the UX range deliver a reliable operation with limited wear and tear. This is especially true for the rough terrain series, where the trucks can withstand challenging applications and terrains. Maintenance costs and requirements are further reduced by simple, readily available, genuine and cost effective replacement parts.


High quality cylinders with hard chrome rods reduce seal wear for long life. A full-flow, low pressure filter on the return line keeps the hydraulic oil clean, which helps to minimise seal and pump wear. In addition, this keeps the control valve in good condition, leading to low service costs.

Model Load Capacity Load Centre Lift Height Turning Radius Overall Width Weight Engine
F1.8UT4 1800kg 500mm 3000mm 3140mm 1450mm 4255kg Yanmar 4TNE98
F1.8UT 1800kg 500mm 3000mm 2870mm 1440mm 3845kg Yanmar 4TNE98
F2.5UT4 2500kg 500mm 3000mm 3140mm 1450mm 4830kg Yanmar 4TNE98
F2.5UT 2500kg 500mm 3000mm 2870mm 1440mm 4465kg Yanmar 4TNE98
F3.5UT 3500kg 500mm 3000mm 2870mm 1600mm 5180kg Yanmar 4TNE98
F3.5UT4 3500kg 500mm 3000mm 3140mm 1600mm 5550kg Yanmar 4TNE98
F5.0UT 5000kg 750kg



Hyster Tracker provides true wireless fleet management, can drive fleet efficiency, improves operator performance, reduces your carbon footprint and lowers your overall material handling costs.
