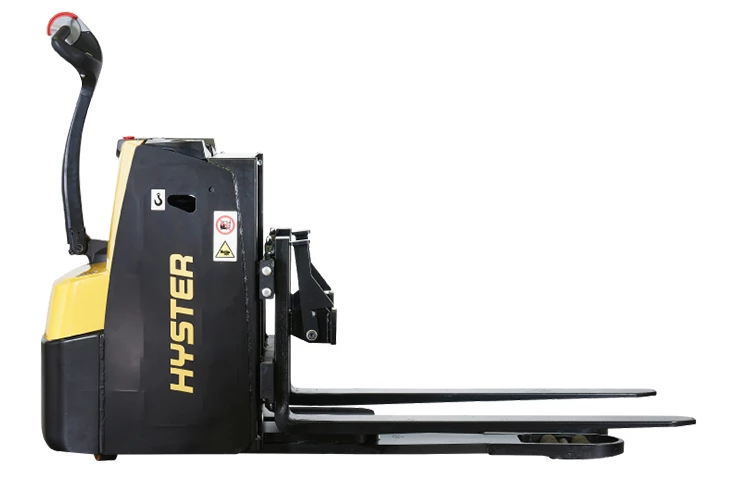

Battery stacker



Designed for battery exchange of the entire Hyster range of electric counterbalance trucks.

  • Creep-speed button
  • Ergonomic tiller arm
  • High-performance motor
  • Adjustable forks
  • Efficient servicing
Industry Best

Ideal for busy warehouse operations were battery removal of Hyster electric counterbalance trucks is essential during busy shifts.

Start a Quote

Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.

Start a Quote

The tough teammate

The S2.4HBE provides precise alignment of the battery before insertion into the counterbalance truck.

The spring-assisted tiller arm is mounted onto the drive unit and the low anchor point ensures minimum steering effort.

Creep-speed button

The creep button located under the tiller head allows for precise alignment of the battery before insertion in to truck.

Ergonomic tiller arm

The tiller head features an ergonomic shaped handle with angled grips and the large butterfly buttons that control the direction, travel speed, electromagnetic brake, lift and lower buttons can be operated with either hand.

High-performance motor

The powerful 1kW SEM traction motor, delvers an excellent response to operating commands and maintains sufficient torque in a variety of situations.

Adjustable forks

The battery stops are adjustable for different sizes of battery.

For 24V and 48V batteries, the battery stops should be applied to position the battery on the forks - the right distance from the fork tips, so the battery can be positioned in the truck correctly.

80V batteries do not require to have the stops applied when replacing the battery.

Efficient servicing

Quick remove covers make servicing easy, while the service interval for hydraulic oil and filter change is 3000 hours.

Model Load Capacity Lift Height AST (wide / long) Battery Capacity Weight
S2.4HBE 2400kg 291mm 2389 - 2262mm 24V / 150Ah | Li-ion 24V / 100-200Ah(V/Ah) 914kg
