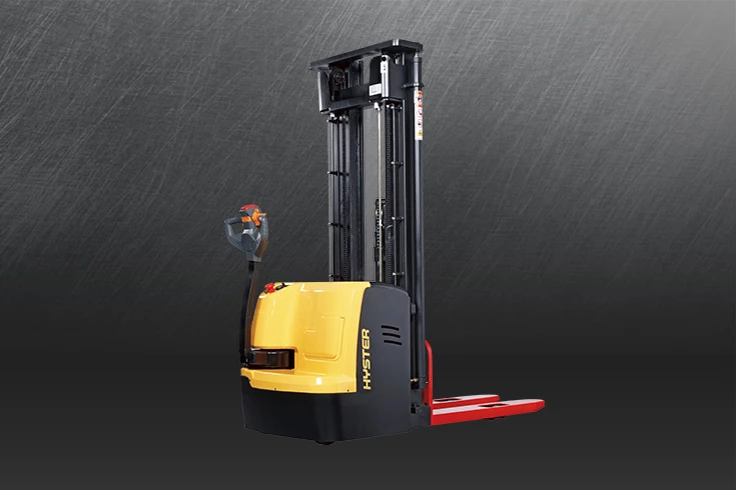

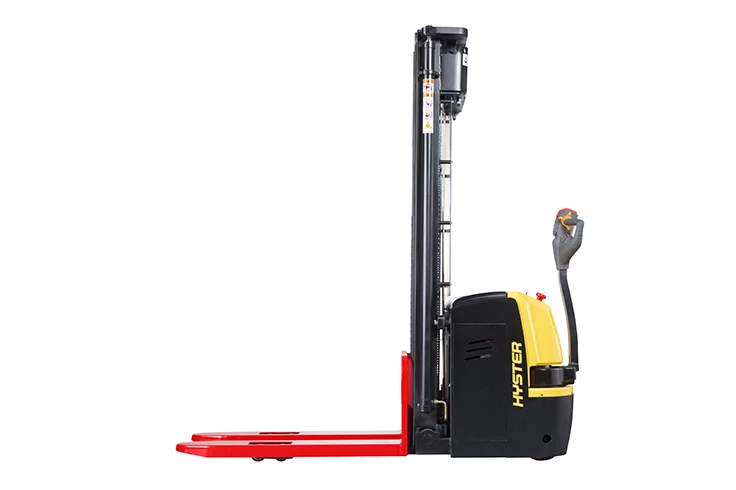

S1.5UT

Pedestrian High Lift Stacker

LIGHT-DUTY APPLICATION

Models
S1.5UT
Capacity
1500kg

A no nonsense pedestrian high lift stacker for demanding warehouse applications

  • Compact design
  • High visibility mast
  • Easy to operate
  • Low maintenance
  • Easy servicing
Downloads
Industry Best

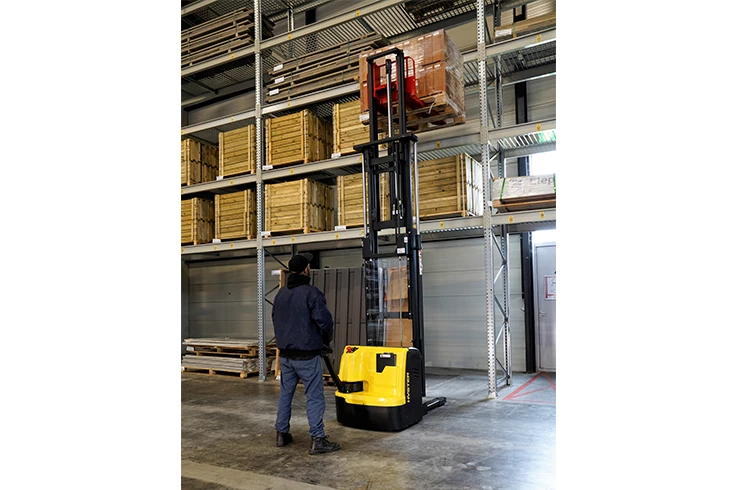

Ideal for warehouse operations. Excellent for stacking pallets in mid-high racking.

Start a Quote

Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.

Start a Quote

Right stacker. Right price. Right application.

A reliable, straight-forward and affordable stacker combining substantial productivity capabilities with simple maintenance and a low cost of operation.

Lift up to 1.5 tonnes. Stack up to 5.6 metres high. No nonsense, no fuss, no problem.

Compact design

Built for a long working life, the compact design allows ease of operation and turning in smaller aisles. Proven, high quality and robust components (fully qualified through Hyster development processes) result in reliable operation and lower wear and tear. Built-in pressure relief valve protects from overloading.

High visibility mast

With lift capacity of 1.5 tonnes at 600mm load centre, faster load placement and retrieval is achievable thanks to excellent visibility through the mast. Full free lift mast options for low overhead clearance are available as well as different mast options including a 2-stage NFL up to 3.5m and 3-stage FFL up to 5.6m. The low centre of gravity enhances stability at full height and provides the operator with peace of mind.

Easy to operate

The truck itself is simple and easy to operate with easy to reach controls. The mid-mounted tiller arm and tiller head design for increased operator comfort. The small turning radius and low centre of gravity increase manoeuvrability and stability in tight warehouse environments. Low effort controls ergonomically placed to reduce operator fatigue and optimise load handling. Selectable performance modes can be tailored to suit requirements.

Low maintenance

Maintenance-free AC technology is built for long working life and lower wear and tear. CANbus technology means less wiring and better performance, while sideways battery removal reduces downtime and hall effect sensors increase component life.

Easy servicing

Due to the uncomplicated design, servicing can be carried out quickly and easily. Troubleshooting and servicing is more efficient due to simple electronic components and with sideways battery removal the truck is easy to maintain. There is easy access to regular
service items and replacement parts are readily available.

Model Load Capacity Lift Height AST (wide / long) Battery Capacity Weight
S1.5UT 1500kg 5600mm 2450 / 2420mm 24V / 240h(V/Ah) 1300kg
