W25-30ZA2-W40ZA

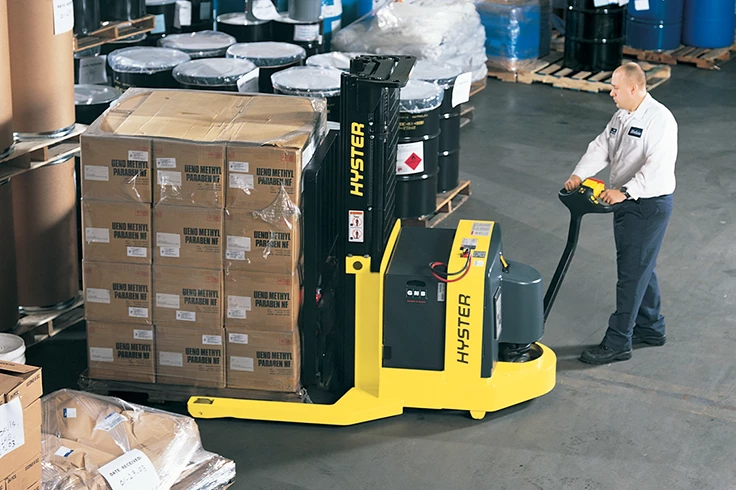

W25ZA2 Walkie Straddle Stacker
W25-30ZA2 Walkie Straddle Stacker
W25-30ZA2 Walkie Stacker
W25-30-ZA2 Pallet Stacker

Walkie High Lift Stacker

DO MORE IN LESS SPACE AND TIME

Models
W25-30ZA2-W40ZA
Capacity
2500-4000lbs

Whether your materials handling jobs include unloading or loading trailers, dockside maneuvering, production-line feeding, put-aways or let-downs, the Hyster® Walkie Stacker product line gives you a big capacity for work cycles handling palletized loads, at the operational cost of a walkie rather than a rider truck.

  • Decreased downtime
  • Low cost of operation
  • Enhanced productivity
  • Performance options
Industry Sector

‐ Food Distribution and Processing
‐ Warehouse & 3PL
‐ Wholesale Distribution
‐ Home Centers
‐ Retail & E-Commerce (DC/fulfillment)
‐ Retail Store Operations
‐ Furniture & Furnishings
‐ Auto Parts Distribution
‐ Health & Pharma

Start a quote

Interested in more information on this truck? Our solutions team is available to discuss your specific application and how this product can meet your needs.

Start a quote

Walk. Stack. Achieve.

Dock-to-stock and everything in between.

Decreased downtime

Complexity and accessibility can turn unscheduled downtime into a service nightmare and cost more than you bargained – not a problem with the ZA series.

  • Optional multi-function display (standard on W25-30ZA2) provides performance-at-a-glance of the battery state-of-charge with four high-intensity LED lights. The display also shows the truck hours, fault code indication and lift interrupt warning.
  • Truck diagnostic information can be read using a hand-held programming tool (optional) or by checking the status of the LED indicator mounted on the controller. All wiring is tagged for quick, easy circuit tracing.
  • Optional battery rollers and easily removed side gates are available to help maximize your uptime and facilitate fast, easy battery change-outs.
  • ‘Knock-out’ load wheel axles offer quick and easy maintenance and replacement.
Low cost of operation

The W25-30ZA2/W40ZA Straddle series is designed to improve your space utilization and productivity while driving down your cost of operations.

  • Enjoy rock-solid stability whether you’re cornering, traveling, lifting or lowering, or traveling over rough floors and dock plates.
  • 2-stage Limited Free-Lift (LFL) or 3-stage Full FreeLift (FFL) mast configurations let you reach the fourth shelf height position at 14 feet and above.
  • Serial communications and solid-state switches with soldered wire connections increase reliability and uptime and reduce maintenance costs.
Enhanced productivity

The Hyster Walkie Stacker product line gives you a significant capacity for work cycles handling palletized loads at the operational cost of a Walkie rather than a Rider truck.

  • Metal Oxide Semiconductor Field Effect Transistor (MOSFET) traction controller and Separately Excited Motor (SEM provide enhanced battery shift life and improved acceleration with higher top-end travels speeds when loaded.
  • Bottom-mounted steering control handle’s ergonomic, easy-to-operate, fingertip control of proportional lift/lower, travel speed and direction, and an optional sideshift make load handling easier and more precise, increasing your productivity.
  • Creep or “turtle” speed button allows you to maneuver the ZA-Straddle series in and out of tight areas.
Performance options

Three operator-selectable performance modes allow you to choose between three preset user configurations that affect acceleration, deceleration (neutral braking), and top travel speed. Now, customizing your Hyster Walkie Stacker product line’s performance to your application is easier than ever.

MODE 1: Economy Mode (battery saver) Soft acceleration; reduced top travel speed with the Auto Deceleration adjusted to a high level.
MODE 2: Performance with Auto Deceleration Medium acceleration; reduced top travel speed with the Auto Deceleration adjusted to a high level.
MODE 3: Performance with Minimum Auto Deceleration High acceleration; high top travel speed with the Auto Deceleration adjusted to the minimum level.

Model Load Capacity Lift Height Battery Capacity Voltage Weight
W40ZA 4000lbs 122 24V / 255-510Ah 2458
W30ZA2 3000lbs 104 24V / 150-255Ah 2323
W25ZA2 2500lbs 104 24V / 150Ah 2305
