Reach Stacker Container Handler
A wide range of configurations and options provide an excellent match to many different applications, which may include intermodal container handling, barge handling, container tipping, steel or wind operations to name just a few.
- Versatility in application
- Engineered to excel
- Ergonomic cab
- Performance optimization
The XD series cab for Hyster Container Handlers
Reimagined design that maximizes operator comfort and uptime. Available now on XD laden and empty container lift trucks.Climb In
OUTSTANDING MANEUVERABILITY AND SUPERIOR HANDLING SPEEDS
Innovative Hyster Reach Stackers are available in a wide range of configurations and options providing unprecedented flexibility to perform tasks in many different applications including 2nd rail handling, container dumping, windmill blade and tower handling, steel handling and barge handling. A Hyster ReachStacker can be equipped with a toolchanger attachment giving the operator the ability to more easily and quickly switch between different attachments (ie: slab tongs & magnets, c-hooks, pipe clamps) and enable a leaner, more productive fleet for steel operations.

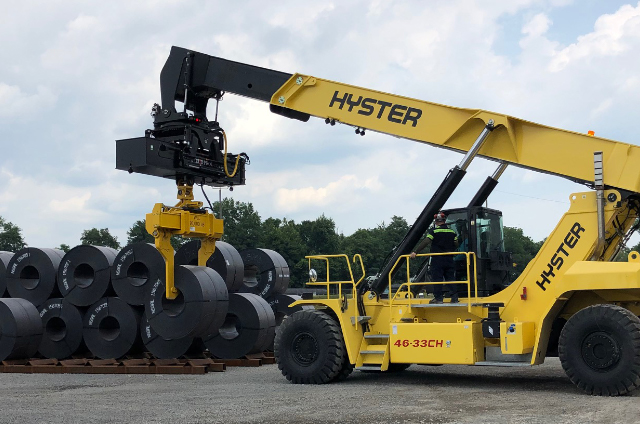

IMPROVING STEEL DISTRIBUTION EFFICIENCY WHITEPAPER
By using a reach stacker, mills can use a single piece of equipment for a variety of tasks handling a variety of steel shapes and sizes - tasks traditionally divided up between several types of equipment like gantry systems, terminal tractors and lift trucks.
- Lightweight, aluminum floor plates and sliding cab provide quick access to major components for service technicians.
- The hydraulic oil tank features a sight glass for the oil level, as well as magnetic drain plugs.
- CANbus on-board diagnostics with fuses centrally located in the side console make for easy servicing and troubleshooting.
- Major engine and drivetrain components are engineered to operate on 500-hour service intervals.
The durable 2-stage boom design is constructed from T-1 steel, with two plane welding for additional strength. The one-piece frame features reinforced welding of the main sections with heavy duty rear supports.
The heavy-duty steer axle is engineered for long life and outstanding steering capability.
The unique and patented Hyster stabilizer utilizes dynamic pressure, meaning approximately 24% of the front loading will remain on the front axle, giving extra side stability and lower ground loading. The heavy duty, innovative stabilizer has rapid deployment, increases stability and reduces tire wear on the rear axle.
The operator cab provides excellent comfort for operators working in the toughest applications and extreme weather conditions. Equipped with an armored glass top window, curved front and rear windows and steel doors with tempered glass, the operator cab provides excellent all-around visibility.
Ergonomically designed, the high visibility cab puts greater productivity within easy reach. Inside the cab, clear and well positioned displays keep the operator in touch with precision load control and critical engine performance at all times.
The cab is designed to minimize noise and vibration levels for the operator and the ergonomically designed superior seating and generous space provides maximum comfort for the operator and helps to reduce fatigue.
A harmonized system design which includes automatic throttle-up, on-demand hydraulics, on-demand cooling and hibernate idle help to reduce fuel consumption on Hyster trucks under varying load conditions. These Hyster solutions can provide significant savings in fuel consumption and maintenance costs over the life of the truck.
Innovative ECO modes: Hi-P and e-Lo (Tier 4 Only)
- Hi-P provides maximum performance and good fuel economy
- e-Lo provides minimum fuel consumption without losing productivity
|Model||Load Capacity||Load Center||Lift Height||Turning Radius||Overall Width||Weight||Engine Type||Transmission||Stacking Height 1st Row||Stacking Height 2nd Row||Stacking Height 3rd Row||Load Capacity 1st Row||Load Capacity 2nd Row||Load Capacity 3rd Row|
|RS46-33XD/62||101413lbs||73in||601||331||165||159174||Cummins QSL 9L Diesel||Dana S.O.H TE 32||5 / 5||4 / 5||3 / 4||101||73||37|
|RS46-36XD/62||101413lbs||73in||605||362||165||174827||Cummins QSL 9L Diesel||Dana S.O.H TE 32||5 / 5||4 / 5||3 / 4||101||79||42|
|RS46-41XD/67||101413lbs||73in||605||366||165||182102||Cummins QSL 9L Diesel||Dana S.O.H TE 32||5 / 5||4 / 5||3 / 4||101||90||91|
|RS46-41XD/62S||101413lbs||73in||605||362||165||184306||Cummins QSL 9L Diesel||Dana S.O.H TE 32||5 / 5||4 / 5||3 / 4||101||90||62|
|RS46-41XD/67S||101413lbs||73in||605||366||165||186511||Cummins QSL 9L Diesel||Dana S.O.H TE 32||5 / 5||4 / 5||3 / 4||101||90||66|
|RS46-29XD/62||101413lbs||73in||601||331||165||151017||Cummins QSL 9L Diesel||Dana S.O.H TE 32||5 / 5||4 / 5||3 / 4||101||64||31|
|RS46-41XD/75S||101413lbs||73in||599||429||165||186621||Cummins QSL 9L Diesel||Dana S.O.H TE 32||5 / 5||4 / 5||3 / 4||101||90||75|
Our dealers are our most important partners in helping you
We would not be where we are today without one of the most professional dealer networks in the industry. We work hard to design and manufacture the best lift trucks, but it is our stellar dealers that bring it all together for you.
Dealers help at every step of the process
- Understanding your specific lift truck applications
- Recommending special features to improve your productivity
- Configuring the proper quotation
- Helping with financing options when required
- Prepping your truck for delivery after it leaves our factory
- Arranging for operator training
- Providing planned maintenance on your trucks
- Supporting National Accounts management
- Providing fleet management services, if needed
- Providing emergency service and parts
- Providing rental trucks at short notice
- Helping determine exactly when to purchase new lift trucks
The GSA creates a centralized location for the federal government, offering products, services, and facilities needed for federal agencies to serve the public. As a GSA certified company, Hyster supports the GSA’s mission to provide innovative solutions for federal agencies with cost-effective and high-quality products. You can also find more information on the General Services Administration at www.gsaadvantage.gov
Available Reach Stacker Options
Your ReachStacker should be versatile. A toolchanger option allows easy switching between attachments so the same ReachStacker can perform multiple functions easily.
Elevated Cabin Option
Stuck with one viewpoint? With the Hyster elevated cabin option, you can expand your views when stacking second rails or handling containers inside a barge. You can even tile the cab backward during high stacking of containers.
Quality processes manufacturing
See how our high capacity forklift trucks, Empty Container Handlers, ReachStackers and Top Picks are built in our factory in Nijmegen, the Netherlands.
Utilizing Hyster ReachStackers that are capable of stacking six containers high and standing up to harsh duty cycles, Ray-Mont is able to meet performance requirements in storage yards.
MANAGE YOUR BIG ASSETS
LEVEL 1 TELEMETRY STANDARD ON BIG TRUCKS
Help promote safety & operator confidence, regulatory compliance, and improve operational transparency. Our cloud-based wireless monitoring provides actionable insights giving you a thorough look into your fleet’s day-to-day operations so your team can work smarter. And it's standard on Hyster high capacity ICE forklifts and container handlers and reach stackers.
